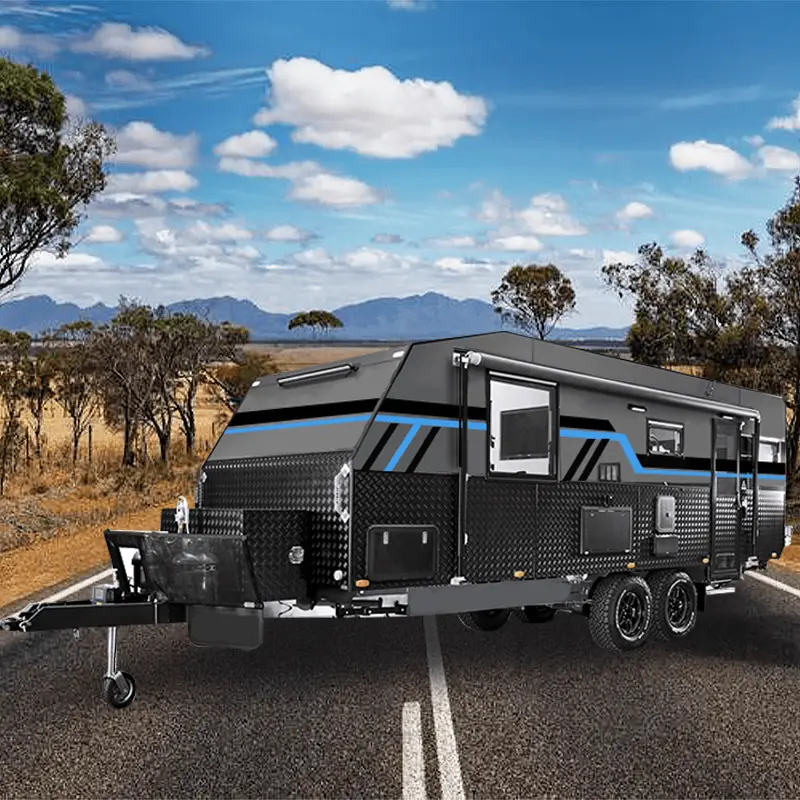

Dual Axle Off Road Caravan
Strong stability and spacious space.
Designed for Australia’s rugged landscapes, this dual-axle off-road caravan delivers superior stability and towing confidence on even the toughest tracks. The reinforced chassis and heavy-duty suspension make it ideal for outback adventures, while the spacious interior layout caters perfectly to families of all sizes. Whether you're escaping for a weekend or embarking on a long-haul journey, the larger footprint offers generous storage, flexible sleeping arrangements, and the comfort of home .
Highlights
Features for ultimate travel comfort
Interior
Reasonable layout for travel
FLOORPLANS
Ranging in size from 17' to 22', available in 8 different floorplans. Please choose the layout and size that best suits your needs.
Tare Mass: 2400(KG)
Internal Length: 5200(MM)
Total Length (Tow Ball to Spare Tyre): 7500(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3200(MM)
Internal Height: 1970(MM)
17FT-Couple
From 191053 CNY (27891 USD)
Tare Mass: 2500(KG)
Internal Length: 5500(MM)
Total Length (Tow Ball to Spare Tyre): 7800(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3200(MM)
Internal Height: 1970(MM)
18FT-Family
From 201904 CNY (29475 USD)
Tare Mass: 2600(KG)
Internal Length: 5800(MM)
Total Length (Tow Ball to Spare Tyre): 8100(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3200(MM)
Internal Height: 1970(MM)
19FT-Couple
From 209144 CNY (30532 USD)
Tare Mass: 2600(KG)
Internal Length: 5800(MM)
Total Length (Tow Ball to Spare Tyre): 8100(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3200(MM)
Internal Height: 1970(MM)
19FT-Family
From 209144 CNY (30532 USD)
Tare Mass: 2800(KG)
Internal Length: 6100(MM)
Total Length (Tow Ball to Spare Tyre): 8400(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3200(MM)
Internal Height: 1970(MM)
20FT-Couple
From 217188 CNY (31706 USD)
Tare Mass: 2800(KG)
Internal Length: 6100(MM)
Total Length (Tow Ball to Spare Tyre): 8400(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3200(MM)
Internal Height: 1970(MM)
20FT-Family
From 217188 CNY (31706 USD)
Tare Mass: 2950(KG)
Internal Length: 6400(MM)
Total Length (Tow Ball to Spare Tyre): 8800(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3200(MM)
Internal Height: 1970(MM)

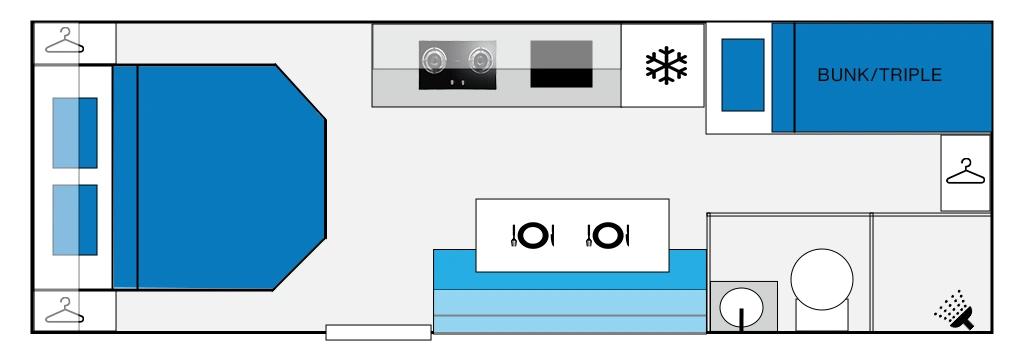

21FT-Family
From 224000 CNY (32940 USD)
Tare Mass: 3000(KG)
Internal Length: 6700(MM)
Total Length (Tow Ball to Spare Tyre): 9100(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3200(MM)
Internal Height: 1970(MM)
22FT-Family
From 229263 CNY (33469 USD)
Tare Mass: 3000(KG)
Internal Length: 6700(MM)
Total Length (Tow Ball to Spare Tyre): 9100(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3200(MM)
Internal Height: 1970(MM)
22FT-Rear Club
From 229263 CNY (33469 USD)
Tare Mass: 3200(KG)
Internal Length: 6850(MM)
Total Length (Tow Ball to Spare Tyre): 9400(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3200(MM)
Internal Height: 1970(MM)

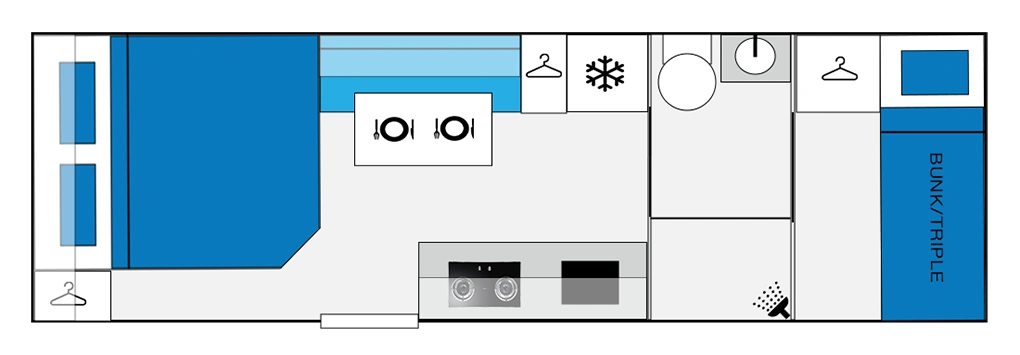

22'6 FT- Family
From 247764 CNY (36170 USD)
Tare Mass: 3400(KG)
Internal Length: 7150(MM)
Total Length (Tow Ball to Spare Tyre): 9700(MM)
External Width: 2350(MM)
Internal Width: 2070(MM)
External Height(Ground to Top of Air-con): 3200(MM)
Internal Height: 1970(MM)

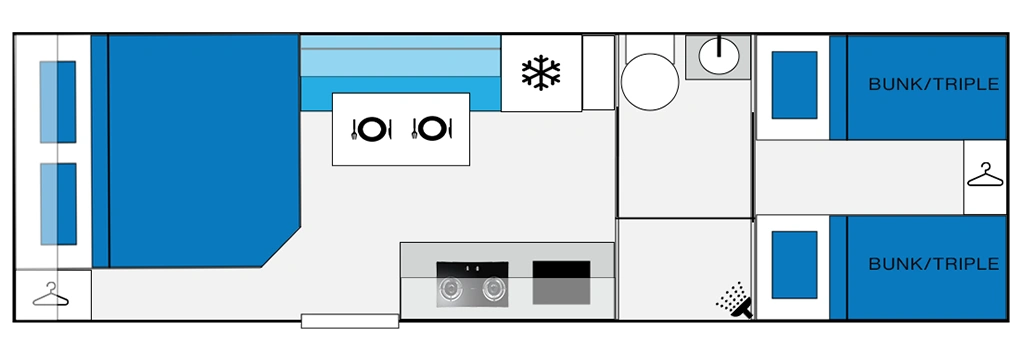

23'6 FT Daul Bunk
From 259831 CNY (37932 USD)
Specifications
Be prepared to break boundaries with materials, finishes and technology that lead the next frontier in premium caravanning.
CHASSIS
- 150MM X 50MM – Q355 Galvanised Steel RHS For Towbar
- Proven High-strength Galvanized Chassis
- 50Mm Ball Coupling
- Jockey Wheel
- 16 X 7.5 6/139.7 Aluminium Alloy Wheels Fitted With 265/75 R16 Goodride Radial All Terrain Tyres

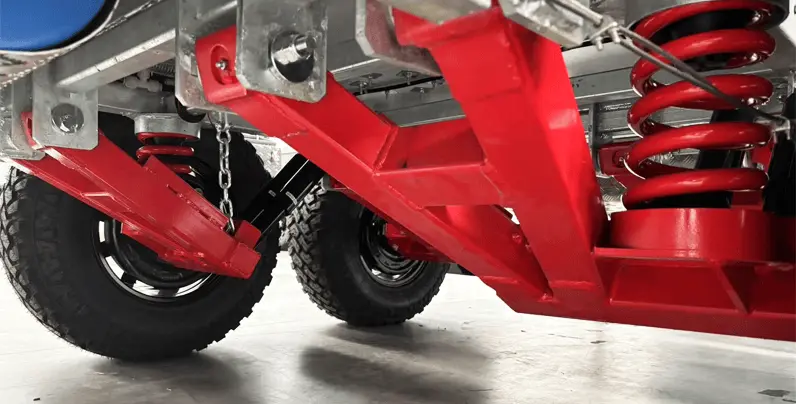

- Independent Coil Spring Trailing Arm Suspension With 2 X Shock Absorbers On Each Arm
- 12″ Electromagnetic Brakes With Handbrake And Drawbar Mounted Emergency Breakaway System
- 4 X Heavy Duty Lockable And Adjustable Drop Down Stabiliser Legs
- 1500Kg High-Lift Scissor Jack & Integrated Jacking Points
- Aluminium Entry Step
EXTERIOR
- Large Awning
- Flat Top Toolbox On A-Frame

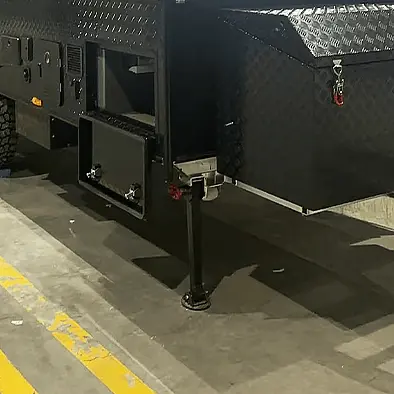

- Tunnel Storage
- 2 X 8.5KG Gas Cylinder Holders
- 2X120L Fresh Water + 1X120L Grey Water
- 12V Electric Marine Diaphragm Pump Water Delivery
- City Quick-Connect Pressure Reducing Water Injection Port
- Wall-Mounted Drop-Down Servery Table
- Front Mounted LED Light Bar + Awning Under Light
- Marine Grade Composite Caravan Body Including Steel Frame Construction
- Aluminium Pattern Protection Side Skirting 75Cm
INTERIOR
- Indoor Modern Style Laminate Bench And Countertop, With Matte Black Sink And Faucet
- Fiberglass Material Enclosed Shower Room
- Tinted Ultra-Thin Double-Layer Acrylic Glass Window And Double-Layer Cassette Blinds With Screens And Blackout Curtains
- Bathroom With 12V Exhaust Fan And LED Lighting
- High-Quality Leather Lounge Seating
- High-Quality Environmentally Friendly Vinyl Floor
- Top Cabinet With Strip Lights
- Toughened Residential Grade Hinge Assembly
APPLIANCES
- Dometic Roof-Mounted Air Conditioner With Heating
- FOGGTI Gas Instant Water Heater
- 148L High-end 12V Compressor Refrigerator
- Built-In 20L 800W Microwave
- Hot/Cold External Shower
- 2.4GHZ Digital Wireless Rear View Camera + 7″ Portable Monitor
- Stereo Head Unit With Internal & External Speakers
- 12V Range Hood
- Induction Cooktop
- 12V Sirocco Fans
ELECTRICAL
- Intelligent Integrated Control System

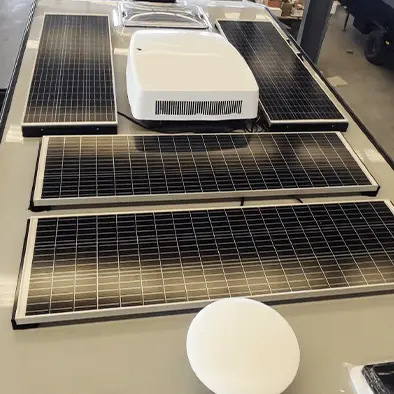

- 600W Solar Panels
- MPPT Solar Control
- Battery Monitor + 200AH Maintenance-Free Battery
- 12V 3000W Pure Sine Wave Inverter, Integrated Inverter Charging Machine
- Internal 12V LED Lighting Throughout
- External 12V LED Lighting Throughout, Awning Side White And Yellow (Bug Light) Wall Lighting, Position Markers, Indicator & Stop/Tail Lights
- 7-Pin Flat Trailer Connector
- 12V Accessory Sockets
- Dual USB Charging Ports (1A & 2A Split)
- TV Outlet
- 240V GPOs
- Reading Light With USB Charging Function
Optional
- Spare Tire + Rear Bumper Bracket
- 22-Inch Smart TV + Bracket + Antenna
- Indoor Two Burner Stove With Glass Cover
- Dometic 4-Burner Stove + Single-Layer Oven
- Outdoor Pull-Out Kitchen (2-Burner Stove + 1 Sink)
- Australian Standard Gas Pipeline (Optional For Australia And New Zealand)
- 35L Outdoor Refrigerator
- Dometic Dust Removal Fan
- 3KG Washing Machine
- Skylight
- 2KW Diesel Heater
- 400AH Life Pro4 Li Battery
- DC-DC Charging + MPPT Integrated Machine

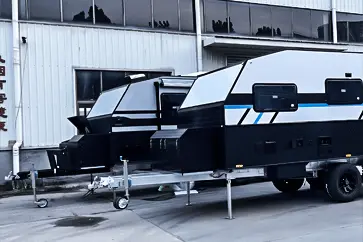

Custom Your Own Caravan
